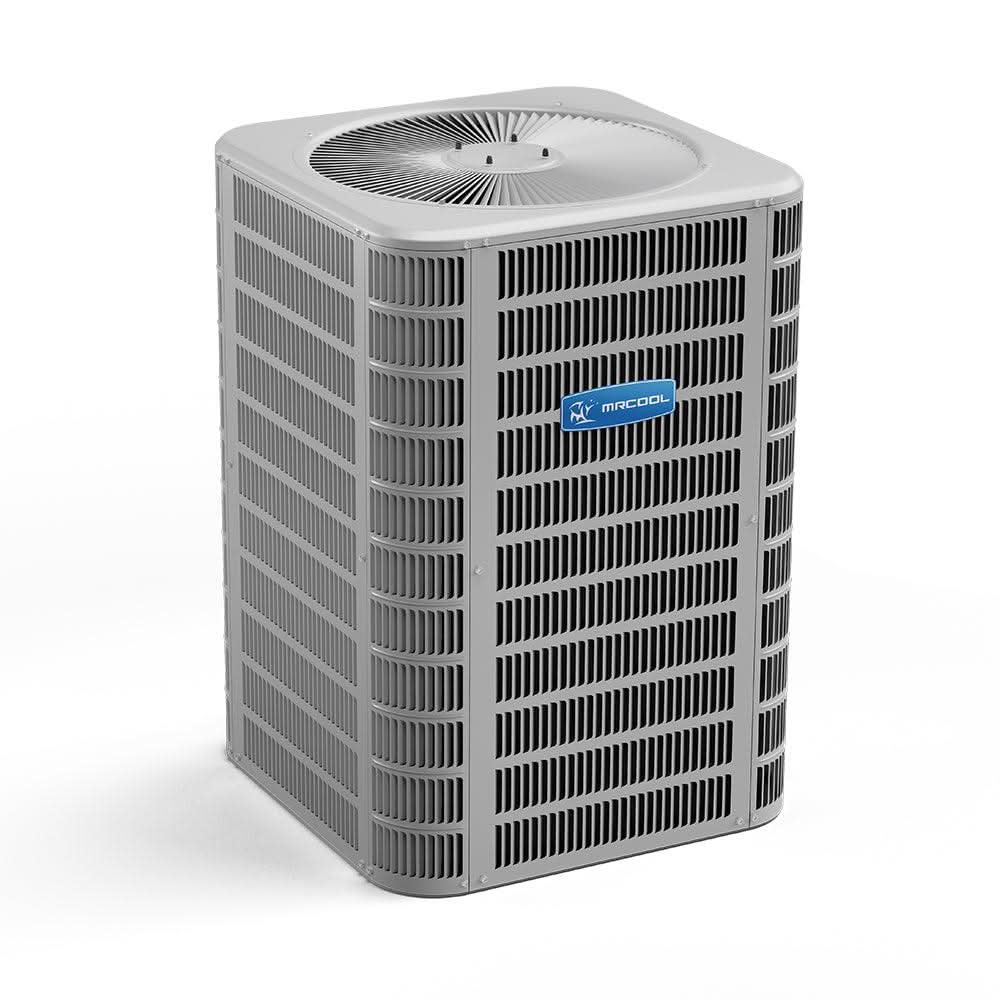

Stay Cool and Save with the MRCOOL 3.5 Ton Split System A/C Condenser

Need cooling relief right away and a lower utility bill? The MRCOOL 3.5 Ton Split System A/C Condenser delivers both. This brand new 208-230 volt, R410-A refrigerant outdoor condenser is engineered to provide powerful cooling with a Seasonal Energy Efficiency Ratio (SEER) of up to 16 when paired with other MRCOOL products. With its high energy efficiency, you can enjoy consistent comfort while watching your utility bills decrease year after year. Please note, this unit is designed exclusively for cooling and is not a heat pump.

Key Features:

• CoolGuard Protection: Advanced corrosion protection technology ensures long-lasting coil durability.
• User-Friendly Maintenance: Corner-mounted controls simplify servicing and upkeep.
• Durable Construction: Full metal louvered construction provides robust coil protection and hail resistance.
• Enhanced Safety: Factory-installed high-pressure switch adds reliability and protection.
• Quick & Easy Repairs: Thread-on pressure switches allow for fast, straightforward replacements.
• Compressor Warranty: 10-year limited warranty on the compressor for long-term peace of mind.
• Pre-Charged for Convenience: Pre-charged for a 15-foot line set, simplifying installation.
• Quiet Operation: Fan orifice design reduces noise levels while ensuring smooth airflow.
• Optimal Cooling Efficiency: Lanced fins maximize heat transfer for superior cooling performance.
• Leak-Proof Construction: Every coil is factory tested to ensure leak-proof operation.
• Certified Quality: ETL and ETLC approved, and AHRI certified, guaranteeing top-tier performance and safety.

Experience the comfort and energy savings of MRCOOL’s 3.5 Ton Split System A/C Condenser—an efficient and reliable cooling solution for your home.

PRODUCT SPECIFICATIONS:

Product Dimensions	28.25'W x 37'D x 28.25'H
Product Weight	211 lbs
Unit Type	Split System AC Condensers
SEER	up to 16
Max SEER	16
EER	12.2
CFM	1340-1460
Tonnage	3 1/2
Cooling Capacity	40000-41000
Voltage	Requires a minimum of 208V-230V/60HZ/ 40A (please check your home meets this electrical requirement prior to purchase)
Phase	1
Cycle	60
Stage	Single
Max Fuse Breaker	40 A
Min Circuit Ampacity	23.4
Color	Gray
Rated Load	17.9
Max Coverage Area	1750
Refrigerant Type	R-410A
Refrigerant Volume	140
Decibel Rating	76
Min Ambient Cool	(-20F)
Line Set Length	15ft, 25ft, 35ft, 50ft
Max Line Set Length	50ft
Line Set Fitting Type	Sweat
Liquid Line Size	3/8 in
Suction Line Size	7/8
Compressor Motor Type	Scroll
Condenser Fan Motor Type	Direct Drive
Condenser Fan Motor HP	1/6
Condenser Fan Motor RPM	825
Metering Device	TXV
Auxiliary Heater	Yes
Auxiliary Heater Sizes	7.5kw, 10kw, 15kw
Certifications	ETL AHRI
Warranty	10 year registered parts warranty
