MRCOOL DIY® Easy Pro® 24K BTU 5th Gen Mini Split System 230V w/ 11.5 ft Quick Connect® Line Set | EZPRO-24-HP-23011DE-O
MRCOOL DIY® Easy Pro® 24K BTU 5th Gen Mini Split System 230V w/ 11.5 ft Quick Connect® Line Set | EZPRO-24-HP-23011DE-O
MRCOOL DIY® Easy Pro® 24K BTU 5th Gen Mini Split System with 11.5 ft Quick Connect® Line Set
The MRCOOL® DIY® Easy Pro® 24K BTU 5th Gen mini split system delivers powerful single-zone heating and cooling for large living rooms, garages, workshops, additions, basements, open-concept areas, and commercial spaces up to 1,050 square feet. Designed for true do-it-yourself installation, this 230V ductless mini split heat pump includes an 11.5 ft pre-charged Quick Connect® line set factory-sealed with R-454B refrigerant, eliminating the need for vacuum pumps, manifold gauges, or licensed HVAC installation.
With inverter-driven performance rated up to 18.9 SEER2 and 8.7 HSPF2-4, the Easy Pro® 24K delivers dependable year-round comfort while helping reduce operating costs. Built-in Wi-Fi compatibility, quiet operation, washable filters, and upgraded warranty coverage make this single-zone mini split system an ideal solution for larger spaces requiring reliable heating and cooling without the expense of professional installation.
Key Features
- True DIY® Installation: Includes an 11.5 ft pre-charged Quick Connect® line set that eliminates the need for vacuum pumps, manifold gauges, or refrigerant charging.
- High-Efficiency Inverter Technology: Variable-speed DC inverter compressor technology automatically adjusts output to maintain consistent comfort while improving energy efficiency.
- Reliable Heating & Cooling: Designed to operate in outdoor temperatures ranging from -13°F to 122°F for dependable year-round performance.
- Quiet Indoor Comfort: Indoor operation reaches as low as 21.5 dB(A) in Sleep mode, helping maintain quiet comfort in living areas, offices, and bedrooms.
- Smart HVAC Control: Compatible with the MRCOOL® Smart HVAC Controller®, Amazon Alexa, Google Assistant, and smartphone app control.
- Easy Maintenance: Washable filters and Gold Fin® condenser coating help protect long-term system performance while minimizing maintenance requirements.
- Enhanced Warranty Coverage: Includes a 5-year compressor warranty and 3-year parts warranty.
Product Specifications
| Specification | MRCOOL DIY® Easy Pro® 24K |
|---|---|
| Model Number | EZPRO-24-HP-23011DE-O |

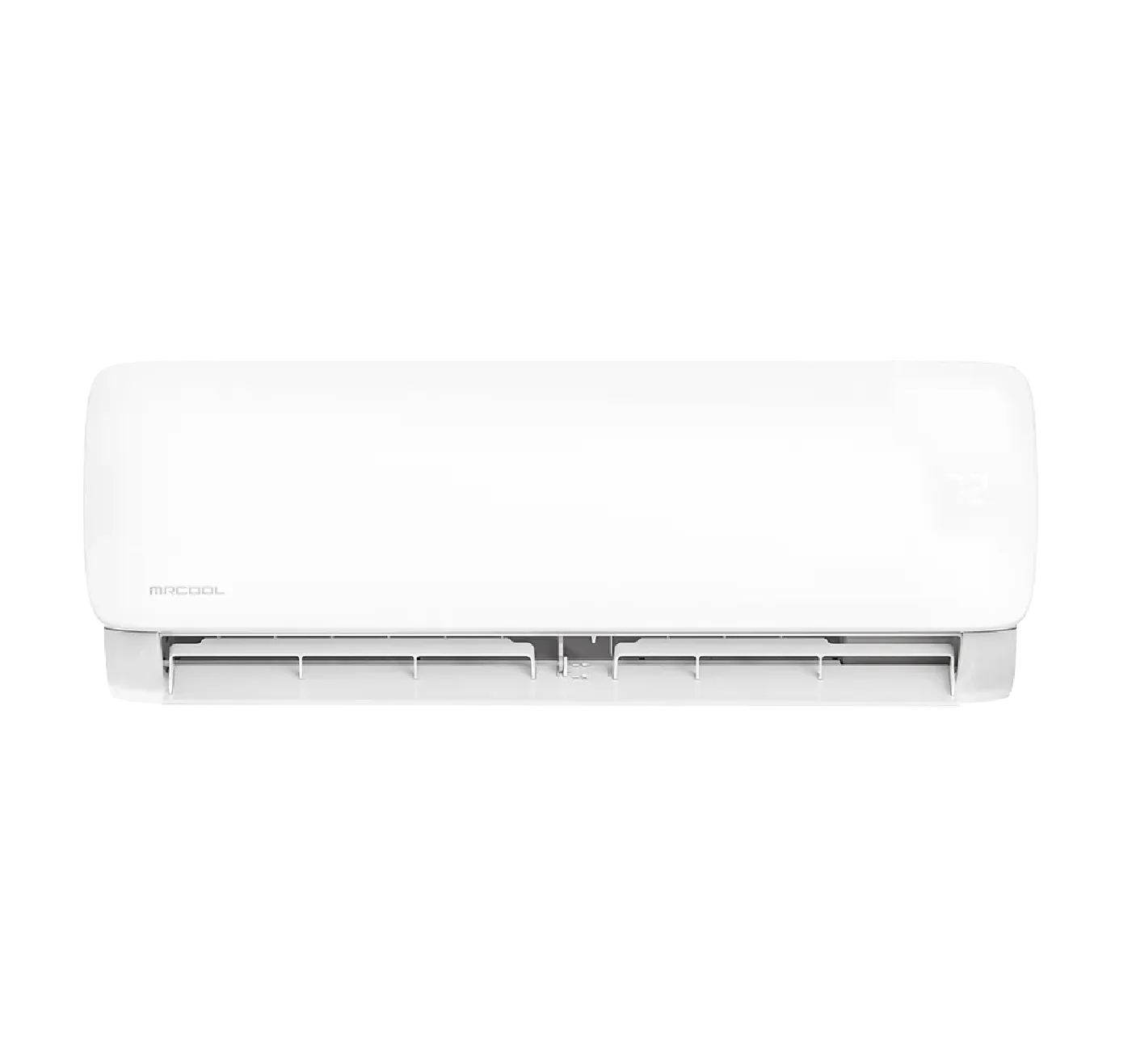

| Indoor Unit Model | EZPRO-24-HP-WMAH-230DE-O |

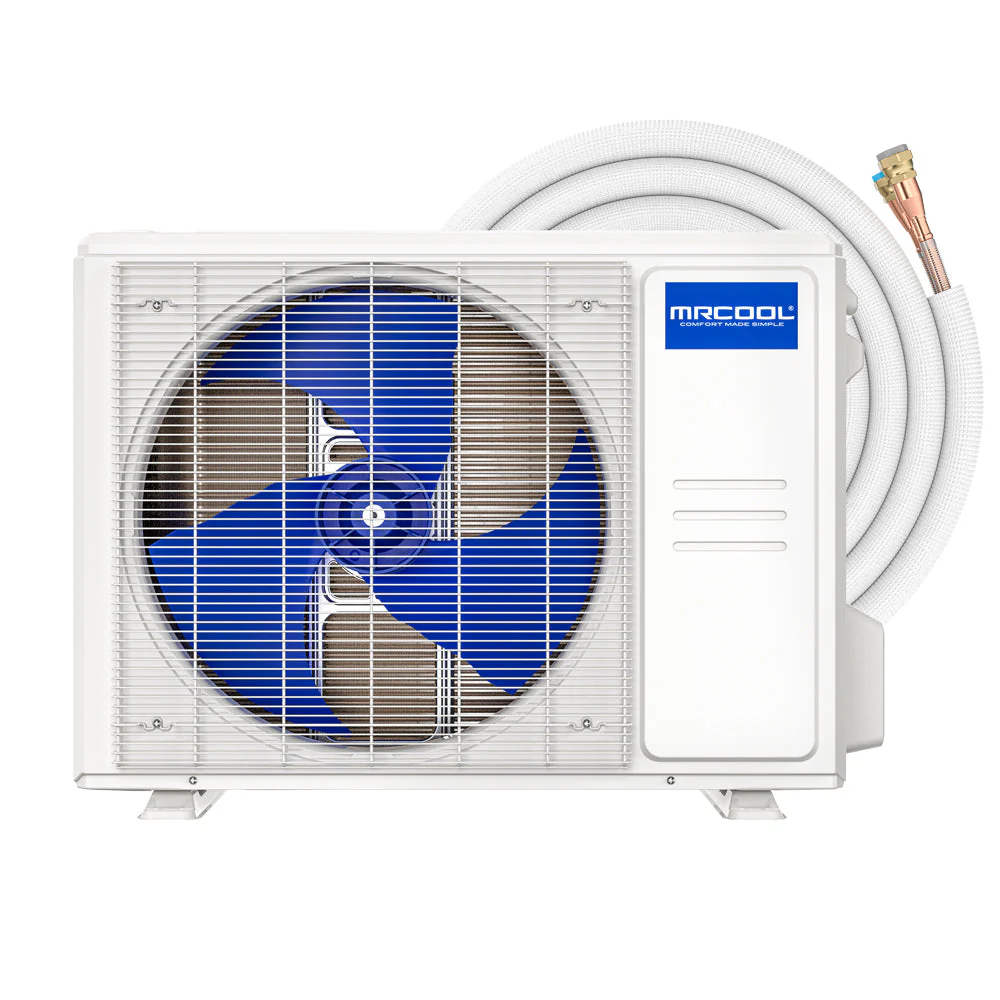

| Outdoor Unit Model | EZPRO-24-HP-C-23011DE-O |
| Cooling Capacity | 24,000 BTU/h |
| Heating Capacity | 25,000 BTU/h |
| Recommended Coverage Area | Up to 1,050 sq. ft. |
| SEER2 | 18.9 |
| EER2 | 9.7 |
| HSPF2-4 | 8.7 |
| HSPF2-5 | 6.9 |
| Voltage | 208-230V, 1 Phase, 60Hz |
| Indoor MCA | 3.0A |
| Indoor Max Fuse / Breaker | 15A |
| Outdoor MCA | 19.0A |
| Outdoor Max Fuse / Breaker | 20A |
| Included Line Set | 11.5 ft pre-charged Quick Connect® line set |
| Refrigerant | R-454B |
| Refrigerant Charge | 50.44 oz. |
| Piping Size | 3/8" liquid line / 5/8" gas line |
| Indoor Noise Level | 51.5 / 45.5 / 40.5 / 26.5 / 21.5 dB(A) |
| Outdoor Noise Level | 61 dB(A) |
| Indoor Dimensions | 42.60" W x 9.21" D x 13.27" H |
| Outdoor Dimensions | 35.04" W x 13.46" D x 26.50" H |
| Indoor Net / Gross Weight | 35.49 / 49.60 lbs. |
| Outdoor Net / Gross Weight | 95.90 / 117.73 lbs. |
| Warranty | 5-year compressor warranty / 3-year parts warranty |
| Certification | ETL Listed |
What Makes the New EZPRO Version Different?
This updated MRCOOL DIY® Easy Pro® model includes an 11.5 ft pre-charged Quick Connect® line set and updated warranty coverage compared to earlier Easy Pro® versions that included a 16 ft installation kit. Both versions use R-454B refrigerant and deliver similar heating and cooling performance, but the new EZPRO package offers a shorter included line set and stronger warranty coverage.
Best Uses for the MRCOOL Easy Pro® 24K Mini Split
- Large garages
- Open-concept living spaces
- Large workshops
- Finished basements
- Additions
- Retail spaces
- Large offices
- Detached buildings
DIY Heating & Cooling for Large Spaces
The MRCOOL DIY® Easy Pro® 24K mini split system delivers powerful ductless heating and cooling for larger residential and light commercial applications without requiring expensive professional installation. With 230V operation, inverter-driven efficiency, built-in smart controls, and an included Quick Connect® line set, this system provides dependable year-round comfort with simplified DIY installation.
