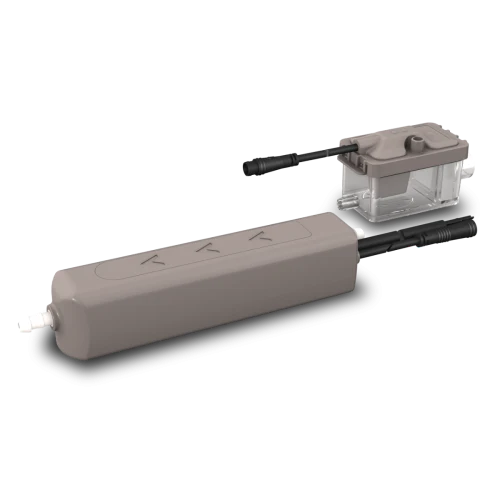

RectorSeal Ghost™ Internal Mini Split Condensate Pump Kit 100-240V

The RectorSeal Ghost™ Internal Condensate Pump Kit is a premium concealed condensate removal solution designed specifically for ductless mini-split systems. Replacing the popular Aspen Mini Aqua style installation, the Ghost Internal features a two-piece design that allows the reservoir and pump to be installed separately, providing exceptional flexibility while keeping components hidden from view.

Designed for installations inside evaporators, above ceilings, or within lineset covers, the Ghost Internal combines adaptive capacitance sensing technology, a self-priming pump, and a gravity-fed reservoir to provide reliable condensate removal with whisper-quiet operation. Fully potted electronics enhance durability while reducing noise and vibration, making it an excellent choice for residential and commercial applications.

Key Features & Benefits

• Hidden Installation Design – Pump and reservoir can be concealed inside evaporators, above ceilings, or within lineset covers.
• Two-Piece Configuration – Separate pump and reservoir provide maximum installation flexibility.
• Adaptive Capacitance Technology – Automatically adjusts pump speed based on condensate production.
• Gravity-Fed Reservoir – Ensures consistent condensate collection and reliable operation.
• Self-Priming Pump – Delivers dependable performance in a variety of installation configurations.
• Ultra-Slim Profile – Easily fits inside evaporators and narrow lineset covers.
• Modular Terminals – Simplifies electrical connections and installation.
• Fully Potted Electronics – Resists moisture, vibration, and environmental contaminants.
• Integrated Overflow Protection – 3A normally closed safety contacts help protect HVAC equipment.
• Anti-Siphon Device Included – Improves condensate management and drainage reliability.

Perfect for Hidden Mini Split Installations

The Ghost Internal is specifically designed for applications where aesthetics matter. The compact reservoir installs discreetly inside the evaporator below the drain pan while the pump can be mounted remotely above ceilings or hidden inside a lineset cover. This concealed installation keeps the condensate management system completely out of sight while maintaining easy access for service when needed.

Unlike traditional external condensate pumps, the Ghost Internal preserves the clean appearance of ductless mini-split systems without sacrificing performance or reliability.

Product Specifications

Brand	RectorSeal
Series	Ghost™ Internal
Replaces	RectorSeal 83809 / Aspen Mini Aqua Style Installations
Product Type	Mini Split Condensate Pump Kit
Power Supply	100-240V AC, 50/60Hz
Power Consumption	Less Than 4 Watts
Pump Technology	Adaptive Capacitance Sensor with Variable-Speed Operation
Capacity	10.6 GPH @ 0' Head / 3.6 GPH @ 39.4' Head
Maximum Discharge Head	65.6 ft (20 m)
Maximum Suction Lift	39.4 ft (12 m)
Maximum System Capacity	157,000 BTU/hr (46 kW)
Safety Contacts	3A Normally Closed Dry Contacts (5A Inductive @ 230V AC)
Maximum Water Temperature	104°F
Discharge Tube Size	1/4" ID
Protection Rating	IP45 Fully Potted Electronics
Sound Level	16 dB(A) @ 3.3 ft (1 m)
Pump Dimensions	7.3" × 1.4" × 1.3"
Installation Type	Concealed / Internal Installation

Benefits for Contractors & Homeowners

Feature	Benefit
Two-Piece Design	Provides maximum installation flexibility
Hidden Installation	Maintains clean appearance of mini split systems
Adaptive Variable-Speed Operation	Reduces noise and improves efficiency
Self-Priming Pump	Supports a wide range of installation options
Overflow Safety Contacts	Protects equipment from condensate backup

Ideal Applications

• MRCOOL DIY Mini Split Systems
• Ductless Heat Pump Systems
• Single-Zone Mini Splits
• Multi-Zone Mini Splits
• Residential HVAC Installations
• Commercial HVAC Applications
• Above-Ceiling Installations
• Concealed Lineset Cover Applications
• Noise-Sensitive Environments

Buy with Confidence from MRCOOL DIY Direct

MRCOOL DIY Direct supplies professional-grade condensate pumps, mini-split accessories, and HVAC installation products trusted by contractors and homeowners nationwide. Order the RectorSeal Ghost Internal Mini Split Condensate Pump Kit today and enjoy ultra-quiet operation, concealed installation flexibility, and reliable condensate management.
