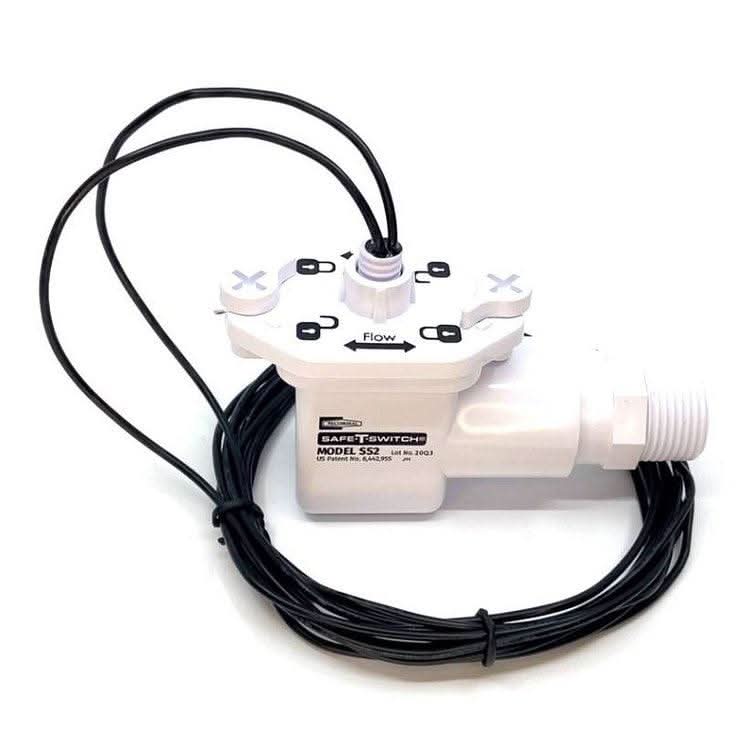

RectorSeal Safe-T-Switch SS2 Condensate Overflow Shut-Off Switch (97087)

Protect your HVAC system and property from costly condensate overflow damage with the RectorSeal Safe-T-Switch SS2 (Model 97087). Designed specifically for installation on the auxiliary outlet of primary condensate drain pans, this reliable overflow safety switch automatically shuts down the air conditioning system when a clogged drain line causes water levels to rise.

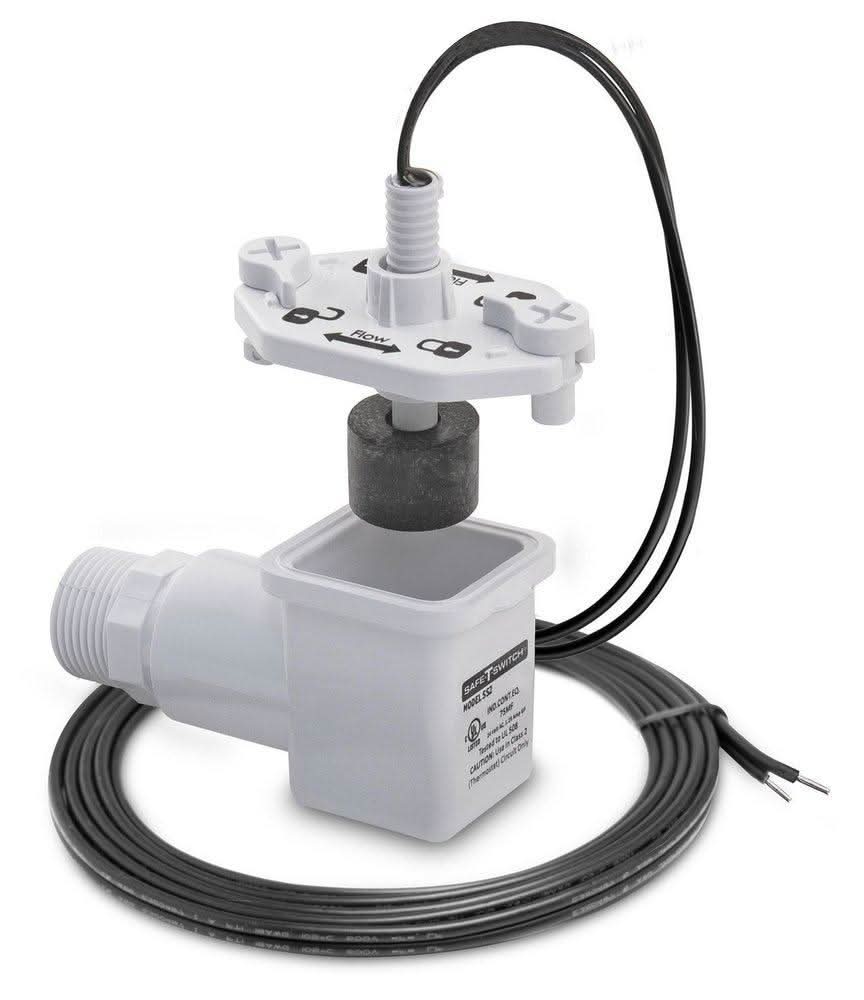

Featuring an adjustable ratcheting float mechanism and dependable magnetic reed switch technology, the SS2 provides accurate water-level detection and automatic equipment shutdown before overflow can damage ceilings, walls, flooring, insulation, or HVAC equipment.

The included 3/4-inch adapter allows for quick installation on most primary drain pan auxiliary outlets, while the adjustable float sensitivity can be fine-tuned without removing the switch cap, making setup and maintenance fast and convenient.

Key Features & Benefits

• Automatic Condensate Overflow Protection – Shuts down HVAC equipment when drain line blockages are detected.
• Designed for Primary Drain Pans – Mounts directly to the auxiliary outlet of the primary drain pan.
• Adjustable Ratcheting Float – Easily customize activation level for precise operation.
• Magnetic Reed Switch Technology – Reliable, maintenance-friendly switching mechanism.
• Prevents Water Damage – Protects ceilings, walls, insulation, and flooring from condensate overflow.
• Easy Installation – Includes 3/4" adapter for quick mounting.
• 6-Foot Wiring Harness – Provides installation flexibility in a wide variety of HVAC applications.
• Ideal for Residential & Commercial Systems – Suitable for air handlers, evaporator coils, and central air conditioning systems.

Why Install a Safe-T-Switch?

Condensate drain line blockages are among the most common causes of HVAC-related water damage. Dirt, algae, sludge, and debris can clog the drain line and cause condensate to back up into the drain pan. The Safe-T-Switch SS2 acts as a critical safety device by detecting rising water levels and automatically shutting down the cooling system before overflow occurs.

This simple yet effective protection device can help prevent expensive repairs, mold growth, damaged ceilings, and emergency HVAC service calls.

Product Specifications

Brand	RectorSeal
Series	Safe-T-Switch
Model	SS2
Part Number	97087
Product Type	Condensate Overflow Shut-Off Switch
Application	Primary Drain Pan Auxiliary Outlet
Voltage Rating	24 VAC
Amp Rating	1.25 Amps
Switch Type	Magnetic Reed Switch
Float Type	Adjustable Ratcheting Float
Wire Length	6 Feet
Wire Size	18 AWG
Material	Plastic
Dimensions	5.5" L × 2" W × 2.5" H
Connection Size	3/4" Adapter Included

Common Applications

• Residential Central Air Conditioning Systems
• Air Handler Installations
• Evaporator Coil Drain Pans
• Primary Condensate Drain Pans
• Attic HVAC Systems
• Commercial HVAC Equipment
• Water Damage Prevention Systems

Benefits for Contractors & Homeowners

Feature	Benefit
Adjustable Float	Customizable shut-off level for accurate protection
Magnetic Reed Switch	Dependable activation and long-term reliability
Primary Pan Installation	Monitors overflow before damage occurs
Automatic System Shutdown	Protects property from water damage and mold growth
6-Foot Wiring Harness	Flexible installation options for HVAC technicians
